L3akCTF 2026 - Subleq Scramble
Description
Some dude’s been trying to hide even more secrets behind yet another one of his “all-new, totally one-of-a-kind encryption algorithms” that he’d been yapping about.
Apparently it’s some sort of “subleq emulator” that runs thousands of iterations of an image encryption algorithm… before straight-up memdumping the entire program state into a binary file when it’s done.
All of it.
Given that he was kind enough to send us an encrypted file, that probably means the algorithm’s open-source now.
Nobody tell him.
Note: Flag format is /L3AK{[A-Z0-9?’_,]+}/
author Shatterbox
Analysis
We can start by analyzing this challenge, we know from the name of the challenge and by the attachments that we are working with a https://esolangs.org/wiki/Subleq program.
Subleq is a one instruction set architecture where the only instruction is subleq a, b, c, it does memory[b] -= memory[a] and if the result is less than or equal to zero, it jumps to c, otherwise it continues to the next instruction, there are also extensions like:
a == -1it reads from stdin intomemory[b],b == -1it writesmemory[a]to stdoutc == -1it halts the program in this case, it uses the standard Subleq where each memory cell is a 16-bit signed integer.
Now we can parse this “program” and see if there’s anything useful:
import struct
with open('data.subleq', 'rb') as f:
data = f.read()
program = list(struct.unpack('<' + 'h' * (len(data) // 2), data))
print(program)
This results in:
[0, 1, -1, 257, 260, 6, 252, 252, 9, 253, 253, 12, 261, 252, 15, 252, 253, 18, 252, 252, 21, 259, 252, 24, 1, 253, 30, 0, 0, 21, 258, 252, 33, 263, 252, 36, 90, 90, 39, 252, 90, 42, 136, 136, 45, 252, 136, 48, 97, 97, 51, 252, 97, 54, 252, 252, 57, 258, 252, 63, 0, 0, 168, 261, 253, 66, 253, 252, 168, 252, 252, 72, 253, 253, 75, 259, 252, 81, 0, 0, 168, 262, 253, 84, 253, 252, 168, 253, 253, 90, 3033, 253, 93, 2, 253, 135, 254, 3033, 99, 253, 253, 102, 252, 252, 105, 255, 252, 108, 252, 253, 111, 255, 255, 114, 253, 255, 117, 253, 253, 120, 252, 252, 123, 256, 252, 126, 252, 253, 129, 256, 256, 132, 253, 256, 135, 1, 3033, 138, 252, 252, 141, 256, 252, 144, 256, 256, 147, 255, 256, 150, 255, 255, 153, 252, 255, 156, 255, 258, 159, 256, 259, 162, 1, 260, 183, 0, 0, 6, 252, 252, 171, 195, 252, 183, 252, -1, 177, 2, 171, 180, 0, 0, 168, 258, -1, 186, 259, -1, 189, 260, -1, 192, 0, 0, -1, -65, -110, -116, -32, -111, -117, -116, -32, -111, -102, -32, -98, -111, -117, -110, -100, -115, -58, -10, -32, 0, -76, -51, -65, -75, -123, -105, -116, -45, -101, -110, -99, -114, -121, -112, -116, -115, -45, -105, -109, -97, -103, -101, -115, -45, -110, -111, -116, -45, -116, -101, -120, -116, -125, -10, -32, 0, -1, 0, -2, 1, 0, -9999, 80, 32, 0, 84, 38, 264, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 1, 0, 0, 0, 1, 0, 0, 1, 0, 1, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 1, 0, 1, 1, 0, 1, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 1, 1, 1, 0, 1, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 1, 1, 0, 1, 0, 0, 1, 1, 0, 1, 0, 1, 0, 1, 0, 1, 1, 0, 1, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 1, 0, 1, 0, 0, 1, 0, 0, 1, 1, 0, 1, 0, 1, 0, 0, 1, 1, 1, 0, 0, 0, 1, 0, 1, 1, 1, 1, 1, 0, 0, 1, 0, 1, 1, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 1, 0, 1, 0, 1, 0, 1, 0, 1, 0, 0, 1, 1, 1, 0, 0, 1, 0, 0, 0, 1, 1, 1, 1, 1, 0, 0, 1, 0, 0, 1, 0, 0, 0, 1, 1, 0, 0, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 1, 1, 1, 1, 1, 1, 0, 1, 1, 0, 0, 0, 0, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 1, 0, 0, 1, 1, 0, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 1, 1, 0, 1, 0, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 0, 1, 1, 1, 0, 0, 0, 1, 1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 1, 1, 0, 1, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 1, 0, 1, 0, 0, 1, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 0, 1, 1, 1, 1, 0, 1, 1, 0, 1, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 1, 1, 0, 0, 1, 0, 1, 0, 0, 1, 1, 1, 0, 0, 0, 1, 0, 1, 1, 0, 0, 1, 1, 1, 1, 0, 0, 1, 0, 0, 1, 1, 1, 1, 1, 0, 1, 0, 0, 1, 0, 0, 1, 1, 0, 1, 1, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 1, 0, 0, 1, 1, 0, 0, 1, 1, 0, 1, 0, 1, 0, 1, 1, 0, 0, 1, 1, 0, 1, 0, 0, 1, 0, 0, 0, 1, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 1, 1, 1, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 1, 1, 1, 0, 0, 0, 1, 1, 0, 0, 1, 0, 0, 1, 1, 1, 1, 0, 1, 0, 1, 1, 1, 1, 0, 1, 1, 1, 1, 0, 0, 1, 1, 0, 0, 1, 0, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 0, 1, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 1, 0, 0, 0, 1, 0, 1, 1, 0, 0, 1, 1, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 0, 1, 0, 1, 1, 0, 1, 1, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 1, 1, 1, 0, 1, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 1, 1, 0, 1, 1, 1, 0, 0, 1, 0, 0, 1, 0, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 0, 1, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 1, 0, 1, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 1, 1, 1, 0, 0, 0, 1, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 1, 0, 1, 1, 0, 1, 0, 1, 1, 0, 1, 1, 1, 1, 1, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 1, 1, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 1, 0, 1, 1, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 0, 1, 1, 1, 0, 0, 1, 0, 0, 0, 1, 0, 1, 0, 1, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 1, 0, 0, 1, 1, 0, 0, 0, 1, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 1, 1, 0, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 1, 0, 1, 0, 0, 1, 1, 0, 1, 1, 0, 1, 0, 0, 1, 1, 1, 1, 0, 1, 1, 0, 0, 1, 1, 1, 0, 0, 0, 1, 0, 0, 1, 1, 1, 0, 1, 0, 0, 1, 1, 1, 1, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 1, 0, 0, 0, 1, 1, 1, 1, 0, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 1, 1, 0, 1, 0, 0, 1, 1, 1, 0, 0, 1, 1, 1, 1, 0, 1, 0, 1, 1, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 1, 0, 0, 1, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 1, 0, 1, 1, 0, 0, 1, 1, 0, 1, 1, 0, 1, 0, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 0, 1, 0, 1, 1, 0, 0, 1, 1, 0, 0, 1, 1, 0, 0, 0, 1, 0, 0, 1, 1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 0, 1, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 1, 0, 0, 1, 0, 1, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 1, 1, 1, 0, 1, 0, 0, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 1, 1, 0, 1, 0, 0, 1, 0, 0, 0, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 1, 0, 1, 0, 0, 1, 1, 1, 1, 1, 0, 1, 1, 1, 0, 1, 0, 0, 0, 0, 0, 1, 1, 1, 1, 0, 1, 0, 0, 0, 0, 0, 1, 1, 0, 1, 1, 1, 0, 1, 1, 0, 0, 1, 1, 1, 1, 0, 0, 1, 1, 0, 0, 0, 1, 0, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 0, 0, 1, 1, 1, 1, 0, 1, 0, 0, 1, 0, 1, 0, 1, 1, 1, 1, 0, 1, 0, 0, 0, 1, 1, 1, 0, 0, 0, 1, 1, 1, 0, 1, 0, 0, 0, 0, 1, 0, 0, 1, 1, 0, 0, 0, 1, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 1, 0, 0, 1, 1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 0, 1, 0, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 1, 0, 0, 0, 1, 1, 0, 1, 0, 1, 0, 0, 0, 1, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 1, 0, 1, 1, 0, 1, 0, 1, 1, 1, 0, 1, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 1, 1, 0, 1, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 1, 0, 0, 1, 0, 1, 0, 1, 1, 1, 0, 0, 0, 0, 1, 1, 0, 0, 1, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 1, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 1, 1, 1, 1, 0, 1, 0, 1, 0, 1, 1, 0, 1, 0, 1, 0, 1, 0, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 1, 1, 1, 1, 1, 0, 1, 1, 0, 1, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 1, 0, 0, 1, 0, 0, 0, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 1, 1, 0, 1, 0, 1, 1, 0, 0, 0, 0, 1, 1, 0, 1, 1, 1, 1, 1, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 1, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 1, 0, 0, 1, 0, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 1, 1, 0, 1, 1, 1, 1, 1, 0, 1, 0, 0, 0, 1, 0, 0, 1, 0, 0, 1, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 1, 0, 1, 1, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 1, 0, 0, 1, 0, 0, 0, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 1, 0, 0, 1, 1, 0, 0, 1, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 1, 0, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 1, 1, 0, 0, 1, 0, 1, 0, 1, 1, 1, 0, 0, 0, 1, 0, 1, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 1, 1, 0, 0, 1, 1, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 1, 0, 0, 1, 0, 0, 1, 0, 0, 1, 1, 1, 0, 1, 0, 1, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 1, 1, 1, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 1, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 1, 1, 0, 0, 1, 0, 0, 1, 0, 1, 0, 0, 1, 0, 1, 0, 0, 0, 1, 0, 0, 1, 0, 1, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 1, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 1, 0, 1, 1, 0, 1, 1, 1, 1, 1, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
there is a strange sequence of numbers at the beginning, some of the chars seem to be ascii, maybe there are some strings there, so we can parse them as:
print(bytes([abs(x) % 256 for x in program]))
that gives out 2 obvious strings: Ant out of bounds:\n and L3AK{it-encrypts-images-not-text}\n
so obviously I submitted it instantly:
so, given the CTF’s ban policy, my reaction was:
I was like: NOOO PLZ DONT BAN ME, I’M NOT A CLANKER PLZZZZ
* Nothing Happened *
The VM
Given that it wasn’t the real flag, it’s time to quickly implement this vm:
import sys, struct
BITS = 16
class SubLeqVM:
def __init__(self, program):
self.mem = list(program)
def run(self, debug_level=0):
pc = 0
while 0 <= pc < len(self.mem):
a, b, c = self.mem[pc], self.mem[pc+1], self.mem[pc+2]
# print(hex(a), hex(b), hex(c))
if a == -1:
self.mem[b] = sys.stdin.read(1).encode()[0]
branch = True
elif b == -1:
sys.stdout.write(chr(self.mem[a] & 0xFF))
sys.stdout.flush()
branch = True
else:
self.mem[b] -= self.mem[a]
if self.mem[b] >= (1 << (BITS-1)): self.mem[b] -= (1 << BITS) # handle overflow
elif self.mem[b] < -(1 << (BITS-1)): self.mem[b] += (1 << BITS) # handle underflow
branch = self.mem[b] <= 0
if debug_level:
print(
f"pc={pc:04d} instr=({hex(a)},{hex(b)},{hex(c)}) "
f"mem[{hex(a)}]={hex(self.mem[a])} mem[{hex(b)}]={hex(self.mem[b])} branch={branch} ",
end=''
)
if debug_level < 2: print()
if debug_level > 1: input()
if branch:
if c == -1:
break
pc = c
else:
pc += 3
return self.mem
with open('data.subleq', 'rb') as f:
data = f.read()
program = list(struct.unpack('<' + 'h' * (len(data) // 2), data))
vm = SubLeqVM(program)
vm.run(debug_level=0)
print()
This results in the following output:
Ant out of bounds:
O&è
There we have the first string that we encountered. Clearly, as a revver, I cannot accept to actually rev something, so I assumend that the program was doing some kind of Langton’s Ant implementation. Then I remembered that on the first output, where I found the 2 strings, there was a lot of 0s and 1s, so I tried to implement a simple function to render that as a bitmap:
from PIL import Image
def save_bitmask(bitmask, pixel_size=1, output_file="frame.png"):
height = len(bitmask)
width = len(bitmask[0])
img = Image.new("L", (width * pixel_size, height * pixel_size))
for y, row in enumerate(bitmask):
for x, bit in enumerate(row):
color = 255 if bit else 0
for dy in range(pixel_size):
for dx in range(pixel_size):
img.putpixel(
(x * pixel_size + dx, y * pixel_size + dy),
color
)
img.save(output_file)
print(f"Saved image to {output_file}")

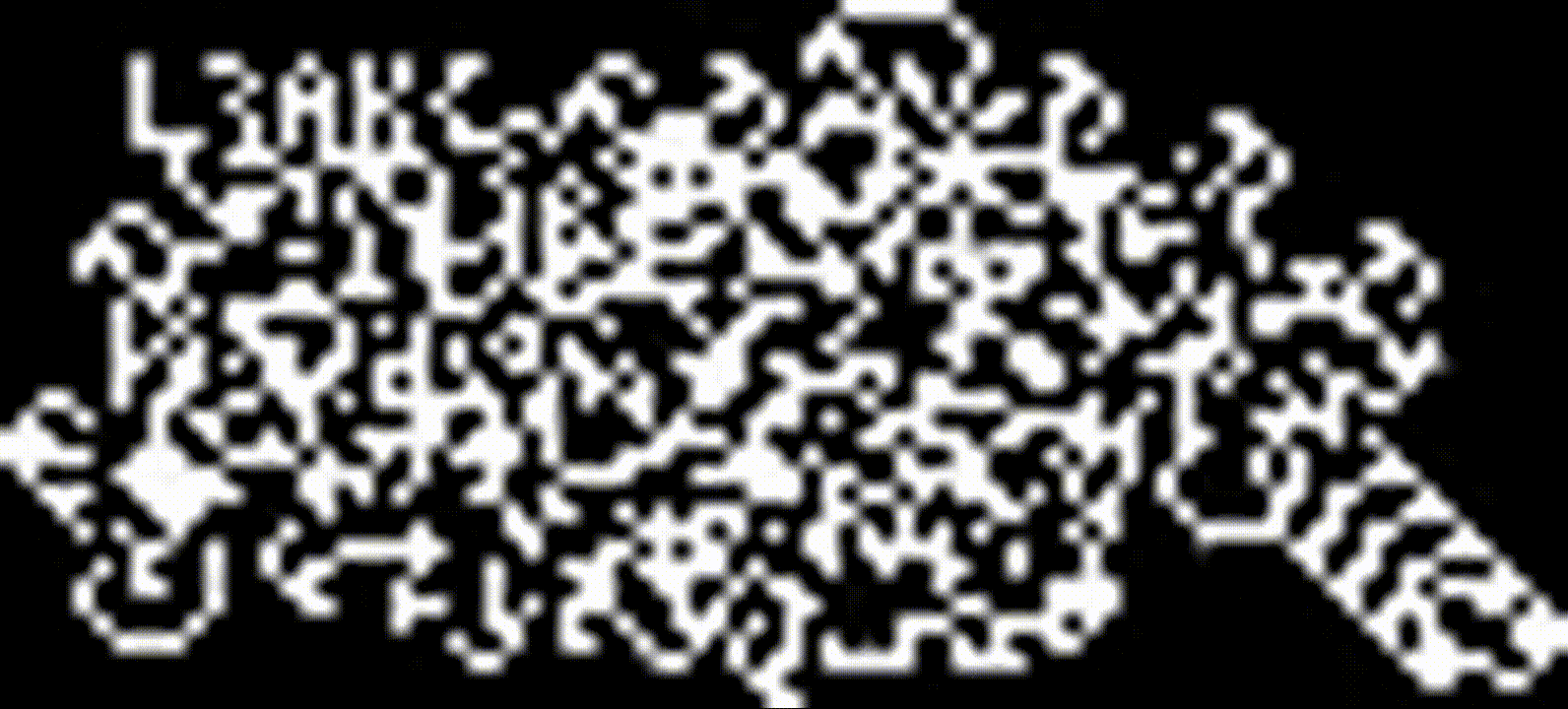

This worked, and I got:
I can see that there is the flag format there (L3AK{), so i tried to dump all the frames, and with some ffmpeg magic i got:
ffmpeg -framerate 30 -i frames/frame_%d.png -c:v libx264 -pix_fmt yuv420p output.mp4
Solve
Now, to solve the challenge a Langton’s Ant simulator might be useful, so I made the following using pygame:
import pygame as pg
from collections import deque
import struct
class Ant:
def __init__(self, app, pos, color, inv_color, direction=0):
self.app = app
self.color, self.inv_color = color, inv_color
self.x, self.y = pos
self.increments = deque([(1, 0), (0, 1), (-1, 0), (0, -1)])
self.increments.rotate(direction) # 0=right, 1=down, 2=left, 3=up
def run(self):
value = self.app.grid[self.y][self.x]
self.app.grid[self.y][self.x] = not value
SIZE = self.app.CELL_SIZE
rect = self.x * SIZE, self.y * SIZE, SIZE - 1, SIZE - 1
if value: pg.draw.rect(self.app.screen, self.inv_color, rect)
else: pg.draw.rect(self.app.screen, self.color, rect)
self.increments.rotate(1) if value else self.increments.rotate(-1)
dx, dy = self.increments[0]
self.x = (self.x + dx) % self.app.COLS
self.y = (self.y + dy) % self.app.ROWS
class App:
def __init__(self, grid, WIDTH=1280, HEIGHT=720, CELL_SIZE=8):
pg.init()
self.screen = pg.display.set_mode([WIDTH * CELL_SIZE, HEIGHT * CELL_SIZE])
self.clock = pg.time.Clock()
self.CELL_SIZE = CELL_SIZE
self.ROWS, self.COLS = HEIGHT, WIDTH
self.grid = grid
for y, row in enumerate(grid):
for x, bit in enumerate(row):
color = pg.Color('white') if bit else pg.Color('black')
rect = x * CELL_SIZE, y * CELL_SIZE, CELL_SIZE - 1, CELL_SIZE - 1
pg.draw.rect(self.screen, color, rect)
self.ants = [Ant(self, [START_X, START_Y], pg.Color('white'), pg.Color('black'), direction=START_DIRECTION)]
def run(self):
i = 0
while True:
[ant.inv_run() for ant in self.ants]
[exit() for i in pg.event.get() if i.type == pg.QUIT]
pg.display.flip()
self.clock.tick(1000)
i += 1
if i >= 10000: input()
now the remaining part is to actually discover where the ant starts and in which direction, so by looking hard at the video I got the start as:
START_X = 80
START_Y = 32
START_DIRECTION = 2 # 0=right, 1=down, 2=left, 3=up
A quick simulation, verified this start.
Now, to get the flag I just need to invert the simulation, so I implemented the inv_run() method for the Ant class as:
def inv_run(self):
dx, dy = self.increments[0]
self.x = (self.x - dx) % self.app.COLS
self.y = (self.y - dy) % self.app.ROWS
value = self.app.grid[self.y][self.x]
self.app.grid[self.y][self.x] = not value
self.increments.rotate(1) if value else self.increments.rotate(-1)
SIZE = self.app.CELL_SIZE
rect = self.x * SIZE, self.y * SIZE, SIZE - 1, SIZE - 1
if value: pg.draw.rect(self.app.screen, self.inv_color, rect)
else: pg.draw.rect(self.app.screen, self.color, rect)

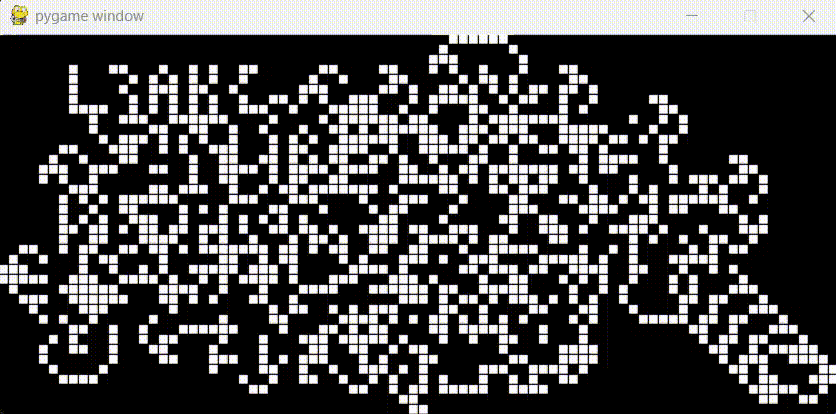

Then just run the simulation:
Flag
L3AK{L4NGT?N'S4NT_SCR4MBL3RRR_10,000}
Final Scripts
VM
import sys, struct
from PIL import Image
WIDTH = 84
HEIGHT = 38
BITS = 16
class SubLeqVM:
def __init__(self, program):
self.mem = list(program)
def run(self, debug_level=0):
steps = 0
pc = 0
while 0 <= pc < len(self.mem):
steps += 1
bitmask = [self.mem[START+y*WIDTH:START+(y + 1)*WIDTH] for y in range(HEIGHT)]
save_bitmask(bitmask, pixel_size=1, output_file=f"frames/frame_{steps}.png")
a, b, c = self.mem[pc], self.mem[pc+1], self.mem[pc+2]
# print(hex(a), hex(b), hex(c))
if a == -1:
self.mem[b] = sys.stdin.read(1).encode()[0]
branch = True
elif b == -1:
sys.stdout.write(chr(self.mem[a] & 0xFF))
sys.stdout.flush()
branch = True
else:
self.mem[b] -= self.mem[a]
if self.mem[b] >= (1 << (BITS-1)): self.mem[b] -= (1 << BITS) # handle overflow
elif self.mem[b] < -(1 << (BITS-1)): self.mem[b] += (1 << BITS) # handle underflow
branch = self.mem[b] <= 0
if debug_level:
print(
f"pc={pc:04d} instr=({hex(a)},{hex(b)},{hex(c)}) "
f"mem[{hex(a)}]={hex(self.mem[a])} mem[{hex(b)}]={hex(self.mem[b])} branch={branch} ",
end=''
)
if debug_level < 2: print()
if debug_level > 1: input()
if branch:
if c == -1:
break
pc = c
else:
pc += 3
bitmask = [self.mem[START+y*WIDTH:START+(y + 1)*WIDTH] for y in range(HEIGHT)]
save_bitmask(bitmask, pixel_size=1, output_file=f"frame_{steps}.png")
return self.mem
def save_bitmask(bitmask, pixel_size=1, output_file="frame.png"):
height = len(bitmask)
width = len(bitmask[0])
img = Image.new("L", (width * pixel_size, height * pixel_size))
for y, row in enumerate(bitmask):
for x, bit in enumerate(row):
color = 255 if bit else 0
for dy in range(pixel_size):
for dx in range(pixel_size):
img.putpixel(
(x * pixel_size + dx, y * pixel_size + dy),
color
)
img.save(output_file)
print(f"Saved image to {output_file}")
with open('data.subleq', 'rb') as f:
data = f.read()
program = list(struct.unpack('<' + 'h' * (len(data) // 2), data))
# print(program)
# print(bytes([abs(x) % 256 for x in program]))
# input()
#! L3AK{it-encrypts-images-not-text} ???????????
START = len(program) - program[::-1].index(264)
print(len(program[START:]))
# bitmask = [program[START+y*WIDTH:START+(y + 1)*WIDTH] for y in range(HEIGHT)]
# save_bitmask(bitmask, pixel_size=32, output_file="frame.png")
vm = SubLeqVM(program)
vm.run(debug_level=0)
print()
Ant Simulator
import pygame as pg
from collections import deque
import struct
class Ant:
def __init__(self, app, pos, color, inv_color, direction=0):
self.app = app
self.color, self.inv_color = color, inv_color
self.x, self.y = pos
self.increments = deque([(1, 0), (0, 1), (-1, 0), (0, -1)])
self.increments.rotate(direction) # 0=right, 1=down, 2=left, 3=up
def run(self):
value = self.app.grid[self.y][self.x]
self.app.grid[self.y][self.x] = not value
SIZE = self.app.CELL_SIZE
rect = self.x * SIZE, self.y * SIZE, SIZE - 1, SIZE - 1
if value: pg.draw.rect(self.app.screen, self.inv_color, rect)
else: pg.draw.rect(self.app.screen, self.color, rect)
self.increments.rotate(1) if value else self.increments.rotate(-1)
dx, dy = self.increments[0]
self.x = (self.x + dx) % self.app.COLS
self.y = (self.y + dy) % self.app.ROWS
def inv_run(self):
dx, dy = self.increments[0]
self.x = (self.x - dx) % self.app.COLS
self.y = (self.y - dy) % self.app.ROWS
value = self.app.grid[self.y][self.x]
self.app.grid[self.y][self.x] = not value
self.increments.rotate(1) if value else self.increments.rotate(-1)
SIZE = self.app.CELL_SIZE
rect = self.x * SIZE, self.y * SIZE, SIZE - 1, SIZE - 1
if value: pg.draw.rect(self.app.screen, self.inv_color, rect)
else: pg.draw.rect(self.app.screen, self.color, rect)
class App:
def __init__(self, grid, WIDTH=1280, HEIGHT=720, CELL_SIZE=8):
pg.init()
self.screen = pg.display.set_mode([WIDTH * CELL_SIZE, HEIGHT * CELL_SIZE])
self.clock = pg.time.Clock()
self.CELL_SIZE = CELL_SIZE
self.ROWS, self.COLS = HEIGHT, WIDTH
self.grid = grid
for y, row in enumerate(grid):
for x, bit in enumerate(row):
color = pg.Color('white') if bit else pg.Color('black')
rect = x * CELL_SIZE, y * CELL_SIZE, CELL_SIZE - 1, CELL_SIZE - 1
pg.draw.rect(self.screen, color, rect)
self.ants = [Ant(self, [START_X, START_Y], pg.Color('white'), pg.Color('black'), direction=START_DIRECTION)]
def run(self):
i = 0
while True:
[ant.inv_run() for ant in self.ants]
[exit() for i in pg.event.get() if i.type == pg.QUIT]
pg.display.flip()
self.clock.tick(1000)
i += 1
if i == 1: input('Enter to start the simulation...')
if i >= 10000: input('Enter to exit the simulation...')
with open('data.subleq', 'rb') as f:
data = f.read()
program = list(struct.unpack('<' + 'h' * (len(data) // 2), data))
START = len(program) - program[::-1].index(264)
WIDTH = 84
HEIGHT = 38
START_X = 80
START_Y = 32
START_DIRECTION = 2 # 0=right, 1=down, 2=left, 3=up
grid = [program[START+y*WIDTH:START+(y + 1)*WIDTH] for y in range(HEIGHT)]
app = App(grid, WIDTH=WIDTH, HEIGHT=HEIGHT, CELL_SIZE=8)
app.run()
# L3AK{L4NGT?N'S4NT_SCR4MBL3RRR_10,000}
